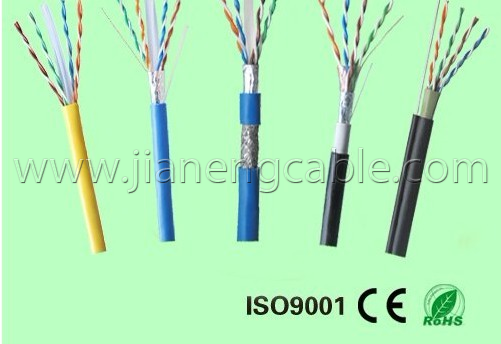

Name:Network Cable Lan

Model:Cat5e Cat6

Despcriptions:

Cat5e Cat6 Cat3 Lan Cable

Certificate: FLUKE/CE/ROHS/ISO

Conductor: CU/CCAG/CCA/CCA+CCS

1. Frequency of 250MHz.
2.0.57mm, 0.56mm.
3. RoHS and CE, ISO 9001: 2000
4. Factory Price
5. Lan cable

1) Standards:
A) International ISO/IEC 11801
B) USA ANSI/TIA/EIA-568B. 2-1

UTP Cat 6 lan cable

3) Frequency: 250MHz...
4) Conforms to UL requirements
5) Transmission velocity: 600mbps
6) Applications: 100 base T, giga-Ethenet, ATM155Mbps, and multimedia networks

Part No.	Name	Structure
Part No.	Name	Conductor (mm)	Core Dimension (mm)	Nom O. D. (mm)	Shielding
JN-1003	4 Pairs UTP CAT. 5E	Φ 0.500	PE Φ 0.930	Φ 5.5	PVC Flame retardant grey
JN-1004	4 Pairs UTP CAT. 5E (outdoor)	Φ 0.500	PE Φ 0.930	Φ 7.0	PVC Flame retardant grey PE Black
JN-1004-1	4 Pairs FTP CAT. 5E (outdoor)	Φ 0.500	PE Φ 0.930	Φ 7.0	Aluminium mylar tinned copper drail wire PVC Flame retardant grey PE Black
JN-1005-1	4 Pairs FTP CAT. 5E (indoor)	Φ 0.50	PE Φ 0.93	Φ 6.0	Aluminium mylar tinned copper drail wire PVC Flame retardant grey
JN-1007	4 Pairs SFTP CAT. 5E (indoor)	Φ 0.52	PE Φ 0.93	Φ 6.4	Aluminium mylar Braiding copper wire PVC Flame retardant grey
JN-1008	NETWORK-600 Cat. 6	Φ 0.57	PE Φ 1.0	Φ 6.5	PVC Flame retardant yellow
JN-1009	Pacth Cord Cat. 5e	7/0.203Strand	PE Φ 0.98	Φ 5.6	PVC Flame retardant grey (blue /green /yellow /red)

CAT7 Lan / Network Cable

Construction with Cable Data

Typical Applications

• 100 Base-TX

• 100 VG - AnyLAN

• 1000 Base-T

• 155 Mbps ATM

• 622 Mbps ATM

Product Description

• Rated temperature : 60℃,75℃

• Annealed Copper solid conductor, 23AWG

• Tinned Copper Wire Braiding

• PE insulation

• Twisted pairs cabled together

• Rip cord optional

• PVC or LSOH jacket

• Suitable for horizontal wiring in ultra high-speed local area network system

• Flammability Grade: CMX, CM, MP, CMG, MPG, CMR, MPR

Part Number	Conductor Dimension (mm)	No. of Pairs	Core Dimension (mm)	Individual Shielding	Overall Shielding	Nom O.D. (mm)
74504	0.57	4	1.42	aluminium/PE	Copper Wire Braid	7.4

Electrical Characteristics

Frequency (MHz)	Impedance (ohm)	Attenuation (dB/100m)	NEXT Worst Pair (dB)	ACR
1.0 4.0 10.0 16.0 20.0 31.25 62.5 100	10±15	2.1 3.9 6.0 7.6 8.5 10.6 15.0 19.0	80 80 80 80 80 80 75 71	77.9 76.1 74.0 72.4 71.5 69.4 60.0 52.0
155.0 200.0 300.0 600.	100±25	24.0 27.0 33.0 50.0	68 66 64 60	44.0 39.0 31.0 10.0
