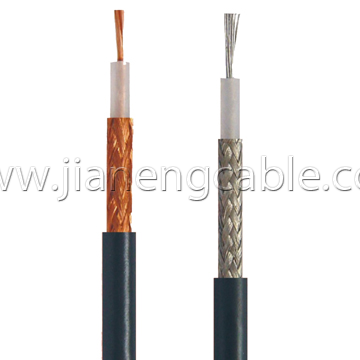

Construction

Physical Specifications

Material Specifications

Center Conductor:.035in(19/0.18mm)
Dielectric:.114in(2.90mm)
1''st Shield:AP bonded
2''st Shield:93%coverage
jacket:.197in(5.0mm)

TC
SPE
AL foil
TC
PVC

Mechanical Properties:

Electrical Properties:

Attenuation[@68oF,(20oC)]

Freauency(MHz)

(dB/100ft)

(dB/100m)

5
10
50
100
200
400
700
900
1000

0.8
1.1
2.5
3.5
5.0
7.1
9.5
10.7
11.2

2.6
3.7
8.2
11.6
16.5
23.2
31.0
35.0
36.8
