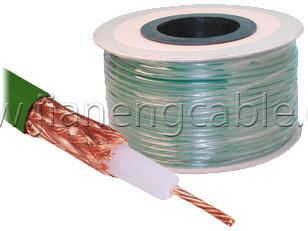

Name:KX6 Kabel
Model:KX6 Kabel
Despcriptions:
KX 6



Construction

Inner conductor

Bare copper

7 x 0.2 mm

Dielectric

Solid PE

Φ3.70 mm

Outer conductor shield

Bare copper /Copper clad Aluminum(CCA)

96x0.10 mm

Shield coverage



80%

Sheath

PVC/FR-PVC

Φ6.10 mm

Electrical & Mechanical Characteristics

Impedance

75±5 Ohm

Nominal capacitance

67 pF/m

Velocity of propagation

66%

Insulation resistance

>5000 Mohm.Km

Inner conductor resistance

87.5 Ohm/Km

Outer conductor resistance

21.0 / 32.5 Ohm/Km

Rated temperature

70°C

Cable weight (approx.)

- kg/km

Attenuation

For bare copper braid For CCA braid

Frequency

Attenuation

Attenuation

Frequency

Attenuation

Attenuation

(MHz)

(dB/100 m)

(dB/100 ft)

(MHz)

(dB/100 m)

(dB/100 ft)

10

5.0

1.52

-

-

-

50

8.1

2.47

50

8.1

2.47

100

13

3.96

100

13

3.96

200

18.5

5.64

200

18.5

5.64

400

22.5

6.86

400

22.5

6.86

850

34.5

10.52

850

34.5

10.52

950

37.5

11.43

950

37.5

11.43

1000

45

13.72

-

-

-

Return Loss

5-1000 MHz

>=20dB
